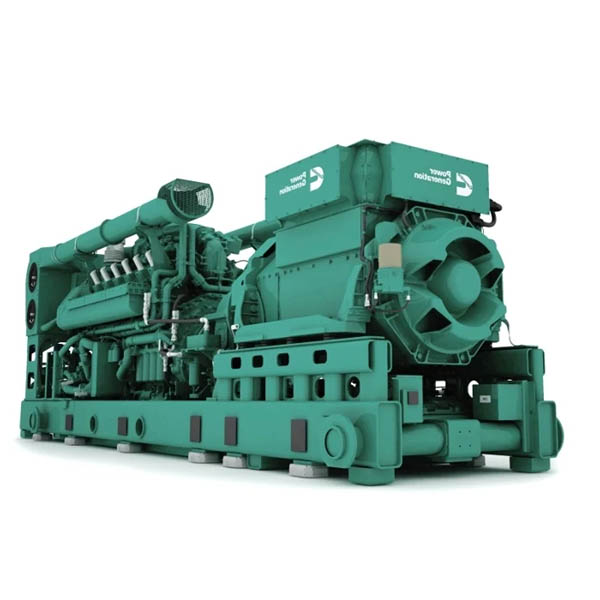

HSK78G GAS GENERATOR SERIES

Description

PEAK ELECTRICAL EFFICIENCY

• Up to 44.2 percent (50 Hz) and 43.5 percent (60 Hz), meeting ISO standards*
• Operates on a wider range of pipeline natural gas down to 70MN without impacting power output
• Automatic engine adjustments account for fuel quality changes and quick load-step performance – all without the need to calibrate or switch off the engine
• More stability, greater uptime and lower fuel costs lead to lower total cost of ownership

GAME-CHANGING FUEL FLEXIBILITY

• High power density down to 40MN fuels
• Powered by a wide range of low-cost and free fuel sources that would otherwise be considered waste products
• New models manage low-BTU fuels more efficiently, delivering robust power with aggressive fuels down to very aggressive contaminant levels with less derating
• No space required for gas-cleaning systems
• Lower capital and operating expenses

EXTREME DEPENDABILITY

Full power capability up to 40^oC (104F) with standard turbo offering and up to blistering 55^oC (131F) with high ambient turbo offering accommodates the site’s environment, including its temperature, atmospheric and ground conditions

MARKET-LEADING COMBINED HEAT & POWER FUNCTIONS

Market-leading thermal efficiency at 47.1% and 2110 kW of thermal output for heating, cooling and steam generation provides significant environmental benefits by recovering CO₂ and takes up less space, offering greater design flexibility

INDUSTRY LEADING SERVICE CYCLES

• Industry’s longest major overhaul service cycle of 80,000 hours means high return on investment, keeping the operations and maintenance costs low
• Sophisticated predictive diagnostics available driven by innovative tools such as onboard spark plug sensors, NOx sensors, and real-time trend data collection provide minimum downtime and optimized standard maintenance costs

GLOBAL COMPLIANCE

• As low as 250 mg/Nm³ (0.5g/hp-hr) NOx without aftertreatment
• 30% load step at G1 with four steps to load providing superior load pickup and load rejection transient capabilities

60HZ COMPLIANCE

USA

• NSPS Compliant Capable
• UL Certified and Marked
  • UL2200
• Compliant with:
  • Electrical Code, NFPA 70
  • Fuel Code, NFPA 37
  • Standby Code, NFPA 110 Level and Type TBD

Canada

• CSA Certified and Marked
  • CSA C22.2 No. 14 and No. 100
• Compliant with:
  • Electrical Code, CSA C22.1
  • Fuel Code, CSA B149
  • Standby Code, CSA C282 and CSA Z32

50HZ COMPLIANCE

Australia

• Compliant with:
  • Electrical Code, AS/NZS 3000
  • Fuel Code, AS/NZS 3814
  • Standby Code, AS/NZS 3009

EU and Asia

• CE Marked
• EU Grid Code Compliant and Certified

Russia

• EAC Marked – Russian Customs Union

Nigeria

• SONCAP
