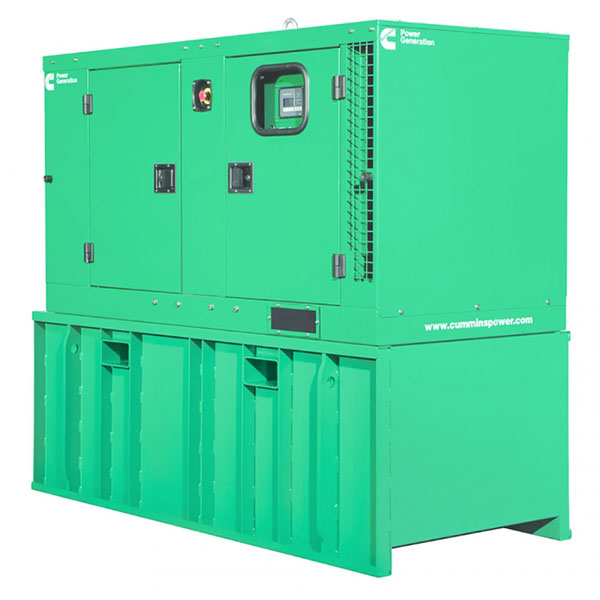

C17 D5T Diesel generator

This Cummins commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary Standby, Prime Power, and Continuous duty applications.

Design: 4 cycle, in-line, naturally aspirated

Bore: 91.7 mm (3.6 in)

Stroke: 127 mm (5 in)

Displacement: 2.5 litre (153 in3)

Cylinder block: Alloy cast iron, in-line 3 cylinder

Battery capacity: 65 AH

Battery charging alternator: 36 Amps

Starting voltage: 12 volt, negative ground

Fuel system: Direct injection

Fuel filter: Spin-on fuel filters with water separator

Air cleaner type: Dry type replaceable element

Lube oil filter type(s): Spin on full flow filter

Standard cooling system: 122 °F (50 °C) ambient radiator with coolant recovery system

SKU: C17 D5T Category:


Powerful Engine. Reliable 4-stroke industrial diesel provides reliable power, low emissions and quick response to load changes.

Alternator – Excellent motor starting capability with 2/3 step low reactance windings, low waveform distortion under non-linear loads.

Control System – PowerCommand® 1.1 electronic control comes standard and provides full integration with the generating set system, including automatic remote start/stop, display of alarms and status messages.

Cooling System – Standard integrated radiator system, designed and tested for rated ambient temperature, simplifies facility design requirements for heat dissipation.

Enclosures – Weatherproof and soundproof enclosures. Max. 74 dB per 1 m at 100% load factor.

Warranty – Backed by a comprehensive warranty and worldwide network of distributors.

Remote control – Large capacity 1000L fuel tank, rugged construction and lockable, theft-proof enclosure.

Extended service interval – Additional 1000 hour interval to change fuel filter, lube oil and air filter.

Load capacity – Single lift point for easy transportation. Additional forklift pockets are also provided.

Built-in ATS – Automatic transfer switch and manual bypass switch built into the generator set enclosure.

Additional information



Fuel Type


Frequency (Hz)
